Project Window



Option Description

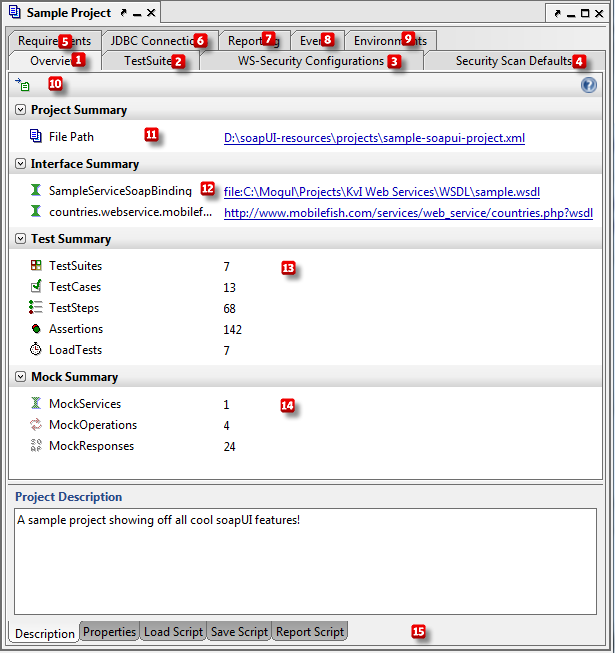

1_snag_evi Overview Project Overview contains useful information and metrics about your project
2_snag_evi TestSuites shows the TestSuites defined in the project and allows one to execute them in sequence or parallell
3_snag_evi WS-Security Configurations WS-Security related settings in soapUI
4_snag_evi Security Scan Defaults shows regexp tokens used in "Sensitive Information Exposure" asserting
5_snag_evi Requirements editor handling the requirements of the project
6_snag_evi JDBC Connections configuring JDBC connection on project level in order to use them in DBConnection DataSource or DataSink TestSteps
7_snag_evi Reporting reporting related configuration (Read Reference)
8_snag_evi Events event-handling functionality which makes it easy to attach custom scripts to test-execution-related events in soapUI
9_snag_evi Environments environment related configuration
10_snag_evi create report button here you can create report
11_snag_evi Project Summary file path of your project file
12_snag_evi Interface Summary file path of your wsdl file
13_snag_evi Test Summary statistic preview of test in project
14_snag_evi Mock Summary statistic preview of mock service
15_snag_evi Overview Inspectors Description, Properties, Load, Save, Report inspectors



Option Description

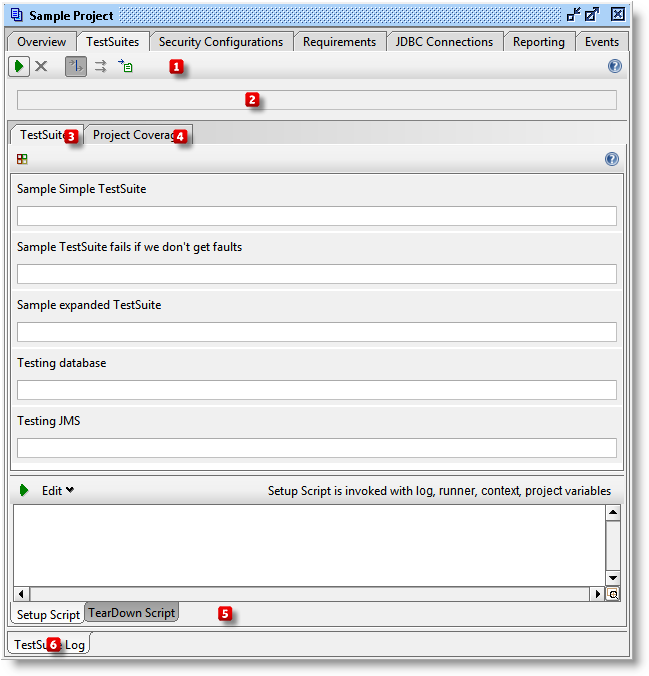

1_snag_evi Toolbar Overall controll of TestSuite running
2_snag_evi Overall progress bar visual representation of overall progress of test
3_snag_evi TestSuites progress bars visual representation of progress of test suites
4_snag_evi Coverage tab covrage view
5_snag_evi Script Inspectors Setup and TearDown script inspectors that will be run before/after the execution of TestSuites
6_snag_evi TestSuite Log Inspector show ongoing output when executing TestSuites in sequence



Option Description

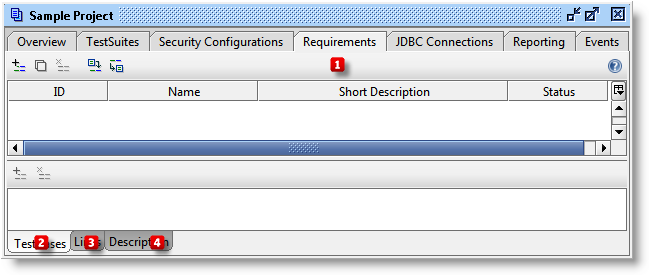

1_snag_evi Toolbar Add, Remove, Import and Export Requirements
2_snag_evi TestCases Inspector This is the functionality for connecting a Requirement to a TestCase in soapUI. You can double click any TestCase and run it
3_snag_evi Links Inspector Link to useful references or actual Requirements in a Project management system
4_snag_evi Description Long description of the TestCase

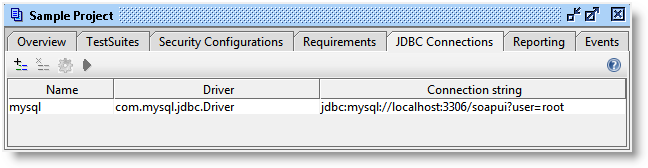

JDBC Connections


Option Description
1_snag_evi jdbc connection toolbar with add, remove , configuration wizard and test connection buttons
2_snag_evi table containing jdbc configurations



Option Description

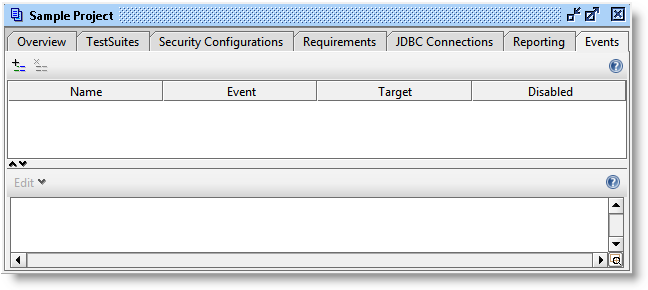

1_snag_evi toolbar for creating and removing event hadlers
2_snag_evi script for coresponding event handler
