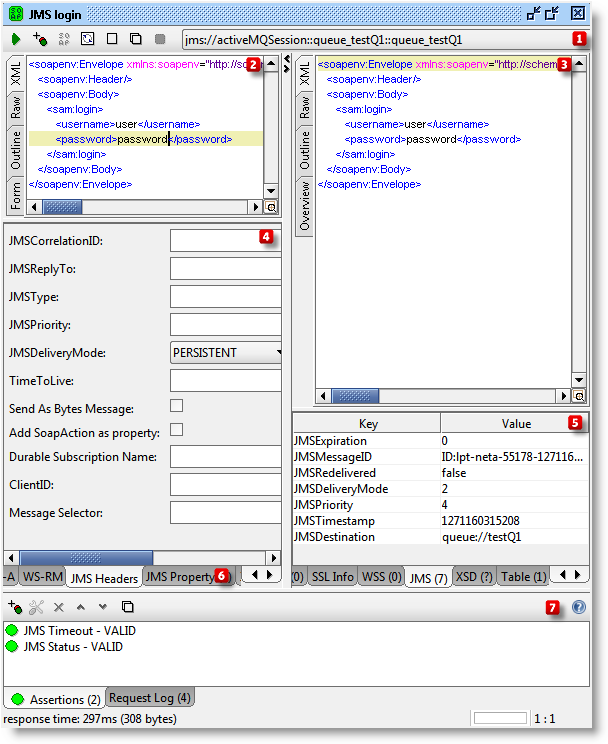

JMS in Soap Test Request Step

	Option	Description
	[Soap Request toolbar](#Soap Request Toolbar)	Overall control of the Soap Request Test Step
	[Request tab](#Request tab)	Place where your request is, in various formats
	[Response tab](#JMS Header Inspector)	Place where your response is, in various formats
	[JMS Header Inspector](#JMS Header Inspector)	specifying JMS Headers and message related options
	[JMS Headers and Properties](#JMS Response Headers and Properties)	JMS Headers and Properties of received message
	[JMS Properties Inspector](#JMS Property Inspector)	JMS Properties of outgoing message
	[JMS Assertions](#JMS Assertions)	Timeout and Status assertion

Soap Request Toolbar

	Option	Description
	Run test step	Submit request to specified endpoint URL
	Add assertion	Adds an assetion to this item
	adds response to mock service	Adds the current response to a MockService
	Recreate shema	Recreates a default request from the shema
	copy request	Creates a copy of this this request
	abort request	Aboorts ongoing request

Request tab

	Option	Description
	XML	Xml view of request
	Raw	Raw view of request
	Outline	Outlined view of request
	Overview	Owerview of request

Response tab

	Option	Description
	XML	Xml view of response
	Raw	Raw view of response
	Outline	Outlined view of response
	Overview	Owerview of response

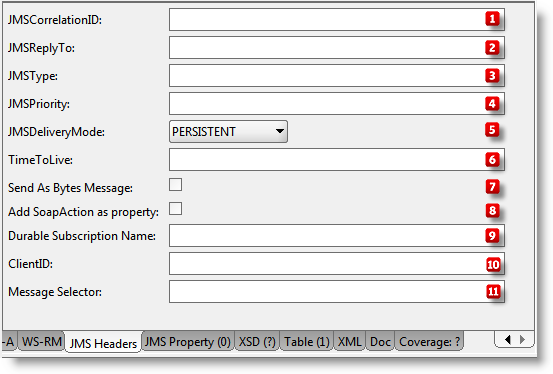

JMS Header Inspector

	Option	Description
	JMSCorrelationID	JMS message header property
	JMSReplyTo	JMS message header property
	JMSType	JMS message header property
	JMSPriority	JMS message header property
	JMSDeliveryMode	JMS message header property
	TimeToLive	specify Tim to Live in miliseconds for message , if zero or not set it means never expires
	Send As BytesMessage	when checked outgoing message type will be BytesMessage
	Add SoapAction as property	automaticaly adds SoapAction and SOAPJMS_soapAction with value soap action method
	Durable Subscription Name	Optionally set durable subscription name, default is durableSubscription + ‘topic_name’
	ClientID	Optionally set ClientID for jms connection
	Message Selector	Specify message selector to determine which message to receive

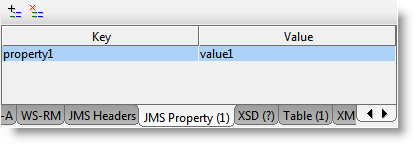

JMS Property Inspector

	Option	Description
	Add property	Add cusotm property
	Remove property	Remove selected property

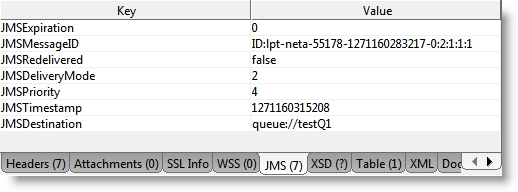

JMS Response Headers and Properties

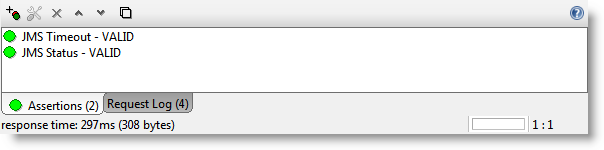

JMS Assertions

Option	Description
JMS Timeout	Assert if message is received in specified time in milisoconds ( Timeout is TestRequest property )
JMS Status	Assert if some JMSException occurs
